Alochromed & Painted Sheet
Alochromed & Painted Sheet
| Size | Grey 1 Side | Grey 2 Sides | Grey Back/White Front | Grey Back/Black Front | Black 1 Side | Alochromed Only | White 1 Side | Silver Anodised Sheet |
|---|---|---|---|---|---|---|---|---|
6 x 3 x 11swg | ||||||||
6 x 4 x 11swg | ||||||||
8 x 4 x 11swg | ||||||||
10 x 4 x 11swg | ||||||||
10 x 5 x 11swg | ||||||||
2438 x 600 x 11swg | ||||||||
3048 x 600 x 11swg | ||||||||
2100 x 1525 x 11swg | ||||||||
2438 x 1219 x 2.5 | ||||||||
2500 x 1250 x 0.7 | ||||||||
2500 x 1250 x 1.0 | ||||||||
2500 x 1250 x 1.5 | ||||||||
2500 x 1250 x 1.8 | ||||||||
2500 x 1250 x 2.0 | ||||||||
2500 x 1250 x 3.0 | ||||||||
3000 x 1250 x 1.5 | ||||||||
3000 x 1500 x 1.5 |
Aluminium Circles
Aluminium Circles
| Size | Painted Grey | Painted Black | Painted Grey With Rails | Painted Black With Rails |
|---|---|---|---|---|
300mm | ||||
450mm | ||||
600mm | ||||
750mm | ||||
900mm | ||||
1200mm | ||||
1500mm |
Grey: (BS 381C/693)
Black: RAL 9005
Rail attached: Bolhoff System
Other sizes available on request.
All Aluminium blanks can be supplied with Sign Channels attached using a blind rivet system.
Aluminium Triangles
Aluminium Triangles
| Size | Painted Grey | Painted Black | Painted Grey With Rails | Painted Black With Rails |
|---|---|---|---|---|
600mm | ||||
750mm | ||||
900mm | ||||
1200mm | ||||
1500mm |
Grey: (BS 381C/693)
Black: RAL 9005
Rail attached: Bolhoff System
Other sizes available on request.
All Aluminium blanks can be supplied with Sign Channels attached using a blind rivet system.
Aluminium Octagons
Aluminium Octagons
| Size | Painted Grey | Painted Black | Painted Grey With Rails | Painted Black With Rails |
|---|---|---|---|---|
600mm | ||||
750mm |
Grey: (BS 381C/693)
Black: RAL 9005
Rail attached: Bolhoff System
Other sizes available on request.
All Aluminium blanks can be supplied with Sign Channels attached using a blind rivet system.
TO BS EN 12889/1-2007 Regulations
BCP Traffic Composite Sheet
Righton Blackburns has developed its own range of ACM, believed to be superior to other composite products on the market and at the cutting edge of technology.
BCP is particularly suitable for road traffic sign applications due to its high strength, rigidity and durability. This rigidity is achieved by its construction of a polythene core sandwiched between two thin aluminium sheets. BCP is widely used throughout the road traffic sector helping to combat theft due to its significantly lower value.
This combination of the materials and manufacturing process provides a product that can be up to a third of the weight for the same rigidity of more traditional sign and display panelling products.
BCP can be supplied in full sheets or cut into bespoke sizes and shapes.
BCP Traffic Composite Sheet
| BCP Type | Size |
|---|---|
BCP Circles (Diameter) | 300 - 1200mm |
BCP Triangles (Vertical Height) | 600 - 900mm |
BCP Traffic (0.3mm skin) | 2000 x 1000 x 3.0mm |
8' x 4' x 3.0mm | |
10' x 5' x 3.0mm | |
BCP Temporary (0.21mm skin) | 8' x 4 x 3.0mm |
10' x 5' x 3.0mm |
BCP Traffic is approved for permanent road signs with full 12 year warranty, meeting BS EN 12889/1-2007 regulations.
All BCP composite is available in other sizes upon request.

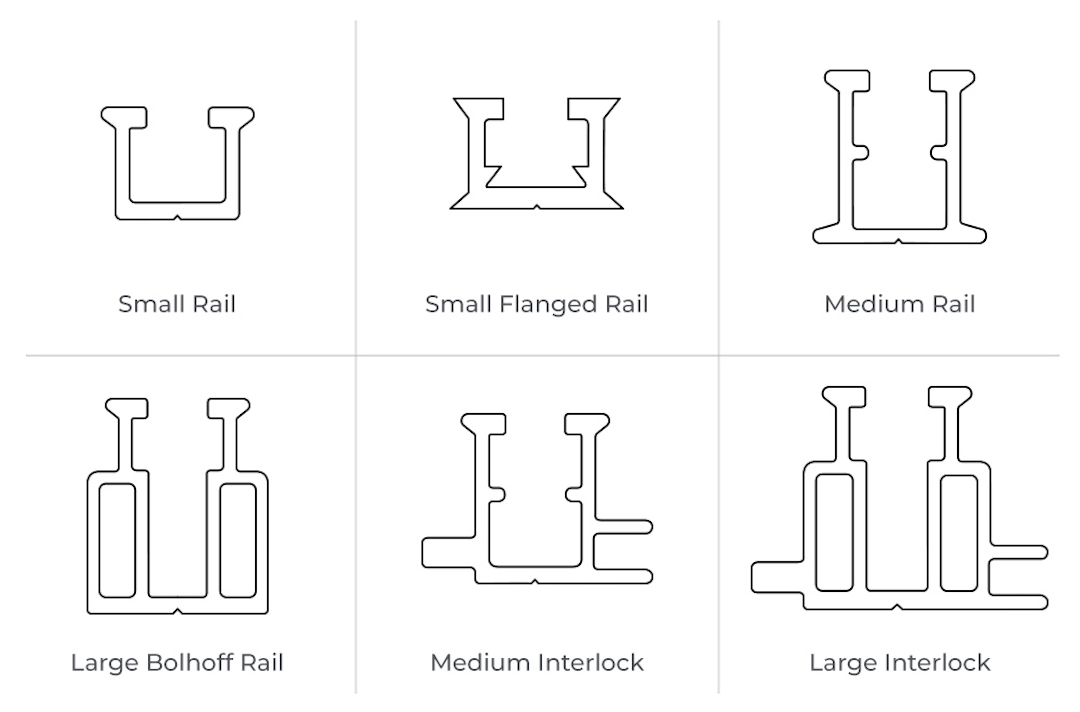

Aluminium Rails
Aluminium Rails
| Type | Length | Painted Grey | Painted Black | Painted White | Mill Finish |
|---|---|---|---|---|---|
Small Rail | 3000mm | ||||
5000mm | |||||
Small Flanged Rail | 5000mm | ||||
Medium Rail | 3000mm | ||||
5000mm | |||||
6000mm | |||||
Large Bolhoff Rail | 6000mm | ||||
Medium Interlock | 5000mm | ||||
6000mm | |||||
Large Interlock | 6000mm |
Grey: BS 381C/6932
Black: RAL 9005
White: RAL 9016
Aluminium Tee Sections
Small & Large Tee Sections
| Type of Tee | Length | Painted Grey | Painted Black | Painted White | Mill Finish |
|---|---|---|---|---|---|
Small Tee | 3000mm | ||||
5000mm | |||||
Large Tee | 3000mm | ||||
5000mm |
Hollow Tee
(Expands large and large interlock aluminium rails)
Allows the length of large and large interlock aluminium rails to be increased by connecting two pieces of sign channel.
The hollow tee component is inserted inside the aluminium rail and another piece attached - Ideal for signs exceeding 6 metres in length.
Righton Blackburns offer a signload program for support and sign stiffening to BS EN 12889/1-2007.
(System Requirements: Windows 2000, XP and Vista)
For further details please contact your local Righton Blackburns Service Centre.
Aluminium Posts
Aluminium Round Posts
| Size | Painted White | Painted Grey | Anodised Silver | Mill Finish |
|---|---|---|---|---|
50mm | ||||
76mm | ||||
89mm |
White: RAL 9016
Grey: bs 381c/693
Anodised Silver: AA25
Other sizes available upon request.
Available in 3m to 6m lengths.
A full range of post caps and base plates are also available with prices on request.
Standard RAL colours to order.
Aluminium Square Posts
| Size | Painted White | Painted Grey | Painted Black | Mill Finish |
|---|---|---|---|---|
50 x 50mm | ||||
76 x 76mm | ||||
100 x 100mm |
White: RAL 9016
Grey: bs 381c/693
Black: RAL 9005
Other sizes available upon request.
Available in 3m to 6m lengths.
Aluminium square posts can also be anodised silver on request.
A full range of post caps and base plates are also available with prices on request.
Standard RAL colours to order.
Steel Posts
Steel Round Posts
| Size | PVC Grey | Galvanised |
|---|---|---|
50mm | ||
60mm | ||
76mm | ||
89mm | ||
114mm | ||
140mm | ||
168mm | ||
197mm | ||
219mm |
Available from 3m lengths upwards.
A full range of stainless steel clips, post caps and base plates are also available with prices on request.
Square Steel Posts
PVC Grey
Sizes available upon request
Available from 3m lengths upwards.
A full range of stainless steel clips, post caps and base plates are also available with prices on request.

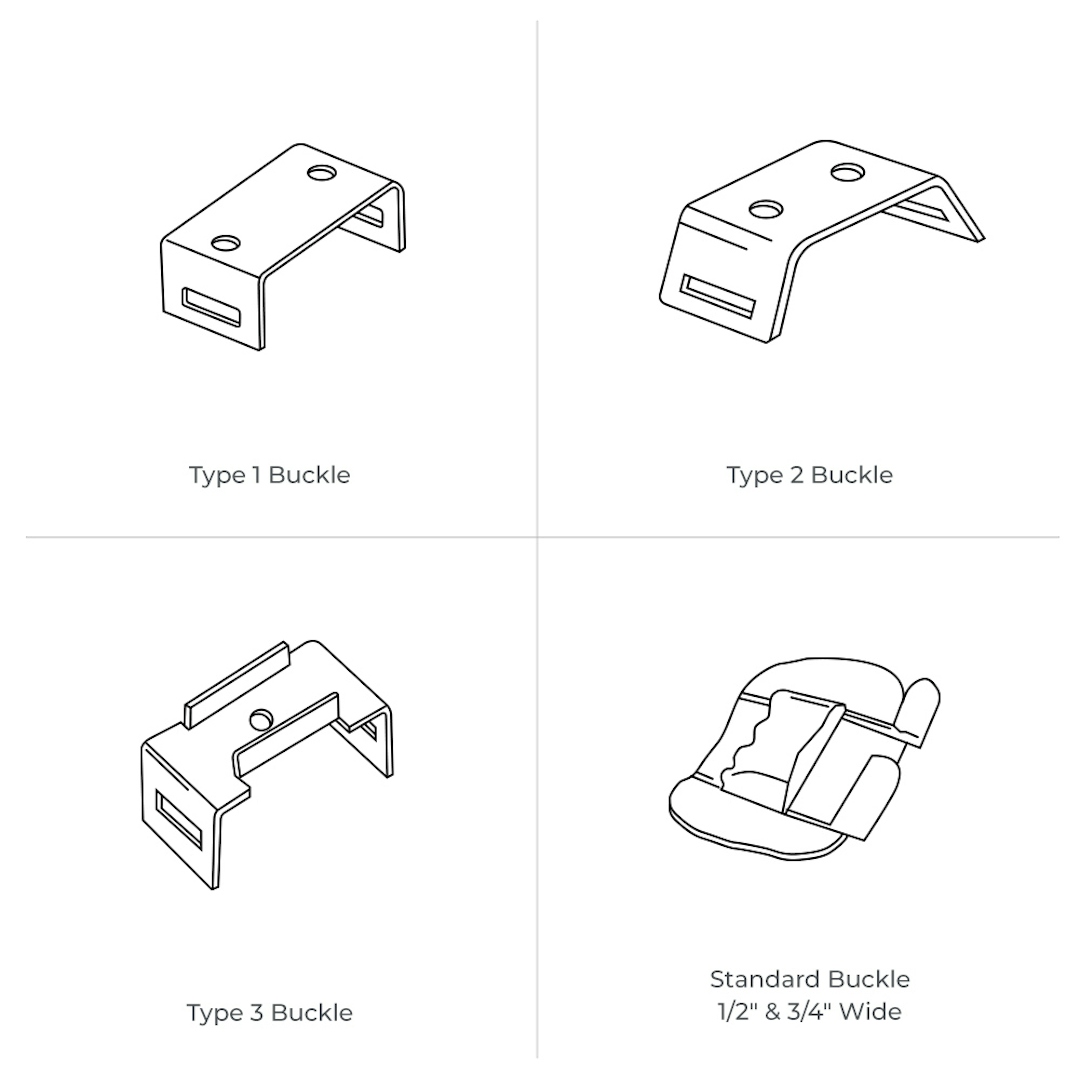

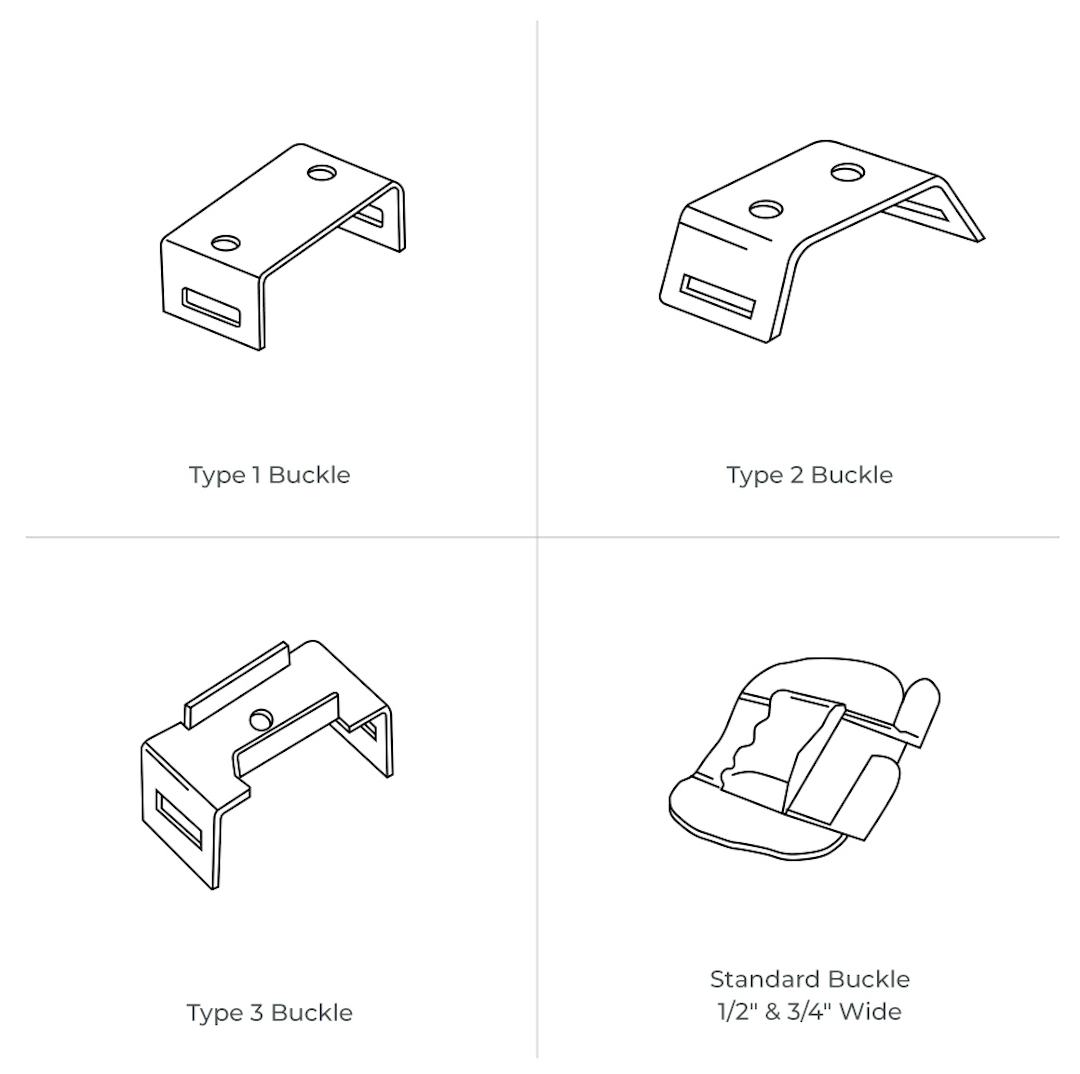

Buckle Systems
Buckles are sold in quantities of 100

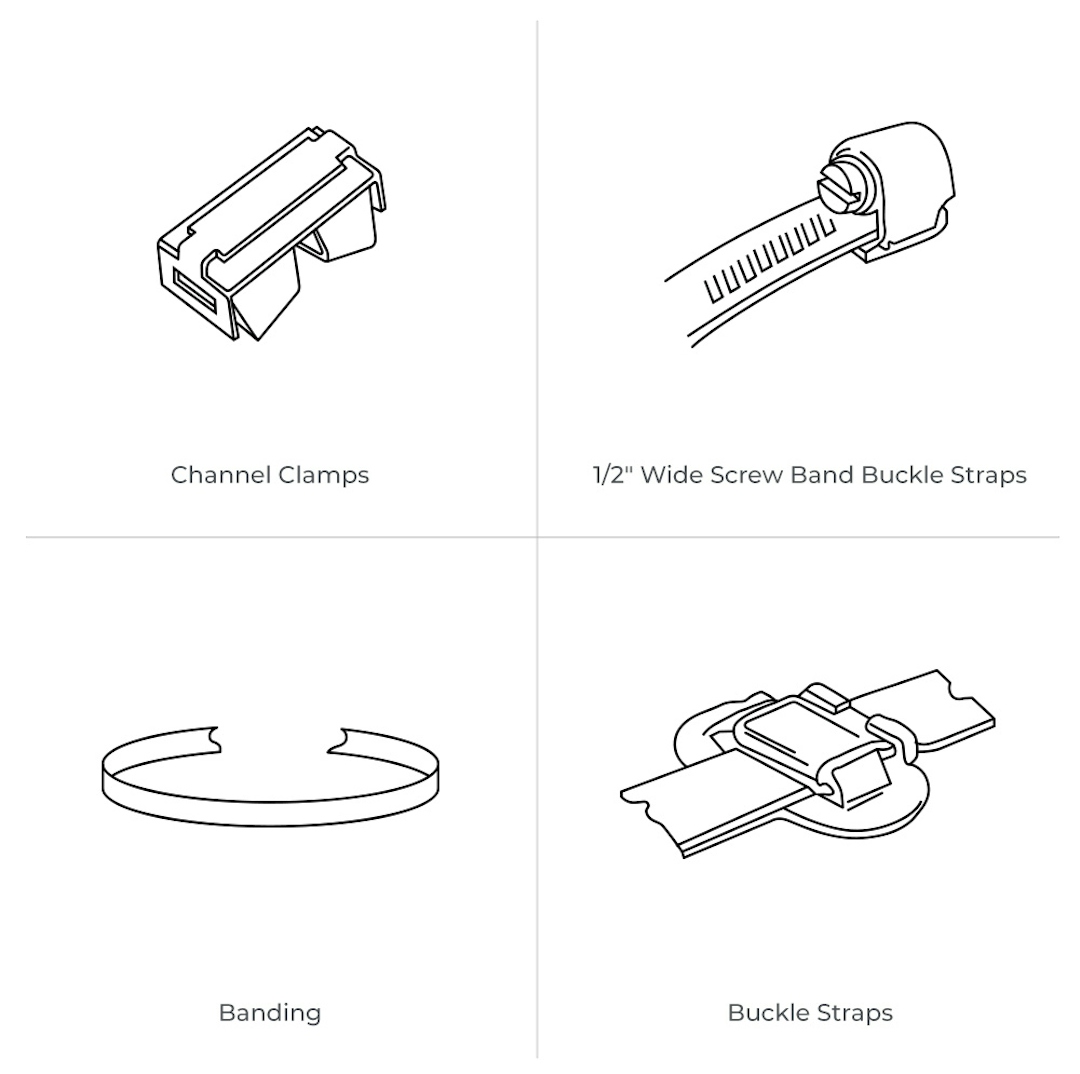

Stainless Steel Banding Systems
1/2" Wide Screw Band Buckle Straps
Lengths available: 16", 18", 24", 36" & 44"
Banding
Available in: 1/2" x 100ft & 3/4" x 100ft coils
1/2" Wide Buckle Straps
Lengths available: 18", 26", 36" & 44"
3/4" Wide Buckle Straps
Lengths available: 18", 26", 36" & 44"

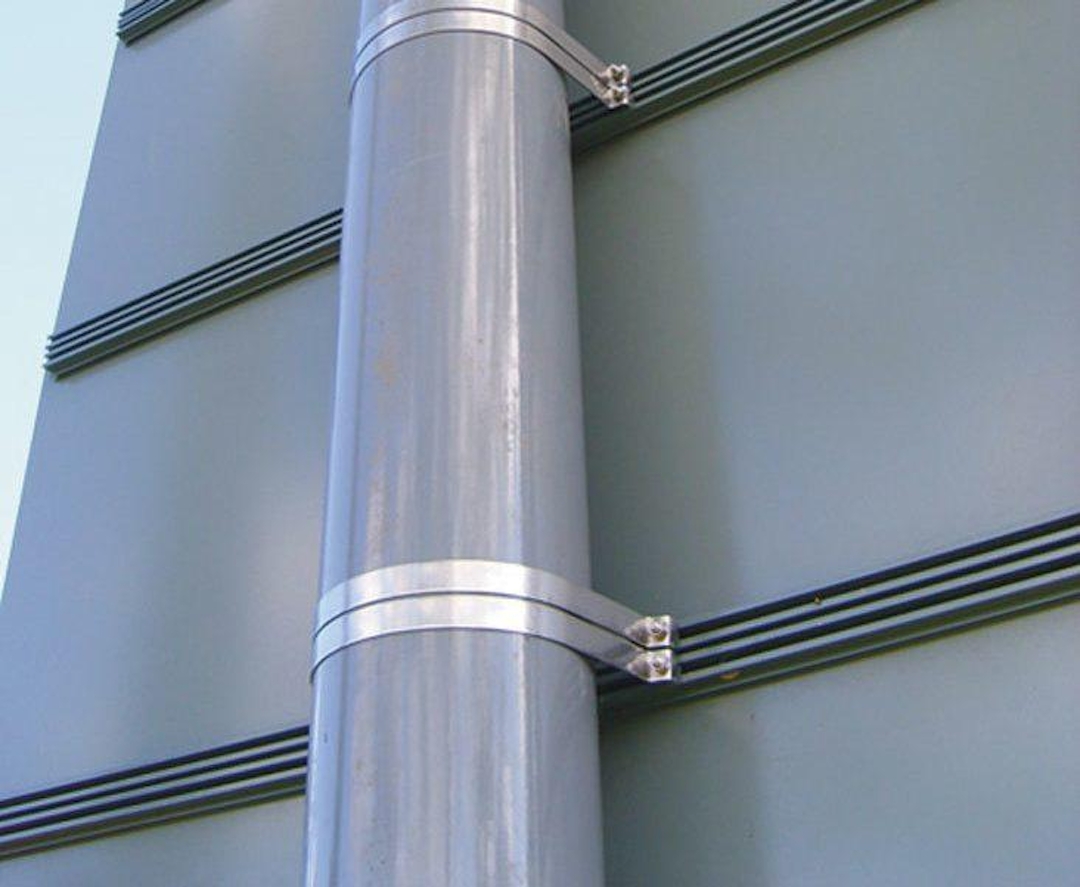

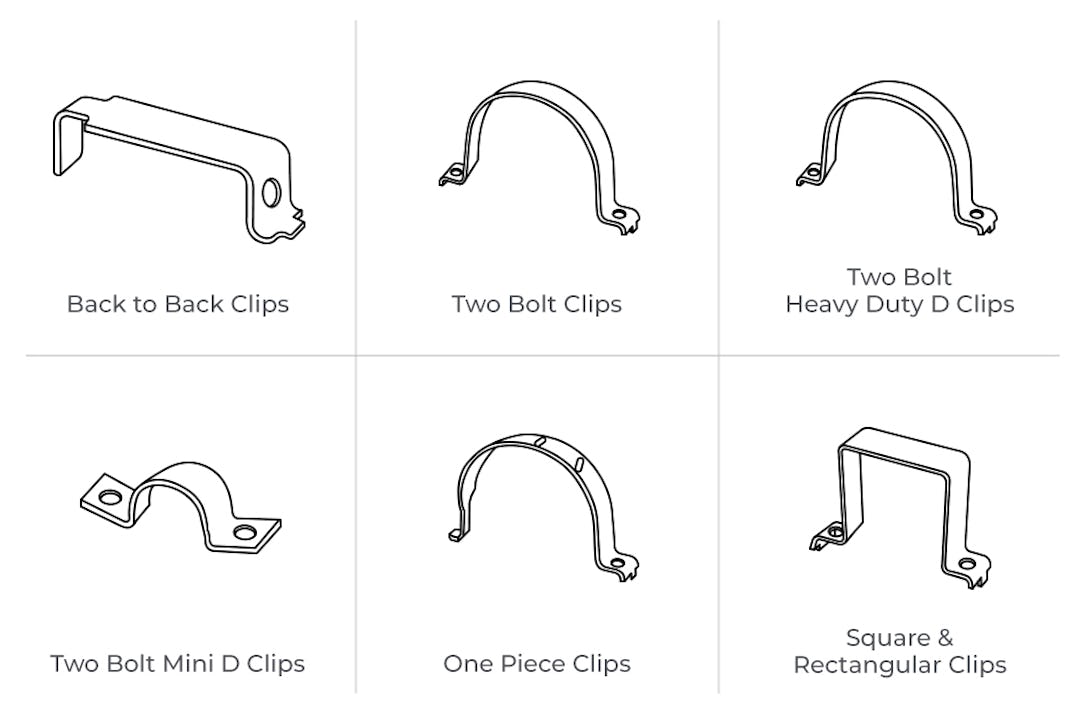

Stainless Steel Clip Sections
Range
- Back to back clips (Size Ø) : 50mm, 60mm, 76mm, 89mm, 114mm & 127mm
- Two Bolt Clips (Size Ø) : 50mm, 60mm, 76mm, 89mm & 114mm
- Two Bolt Heavy Duty D Clips (Size Ø) : 140mm, 168mm, 194mm, 219mm & 244mm
- Two Bolt Mini D Clips (Size Ø) : 13mm, 16mm, 19mm, 89mm & 25mm
- One Piece Clips (Size Ø) : 50mm, 60mm, 76mm, 89mm & 114mm
- Square & Rectangular Clips: 50 x 50m, 76 x 76mm, 80 x 80mm & 100 x 100mm

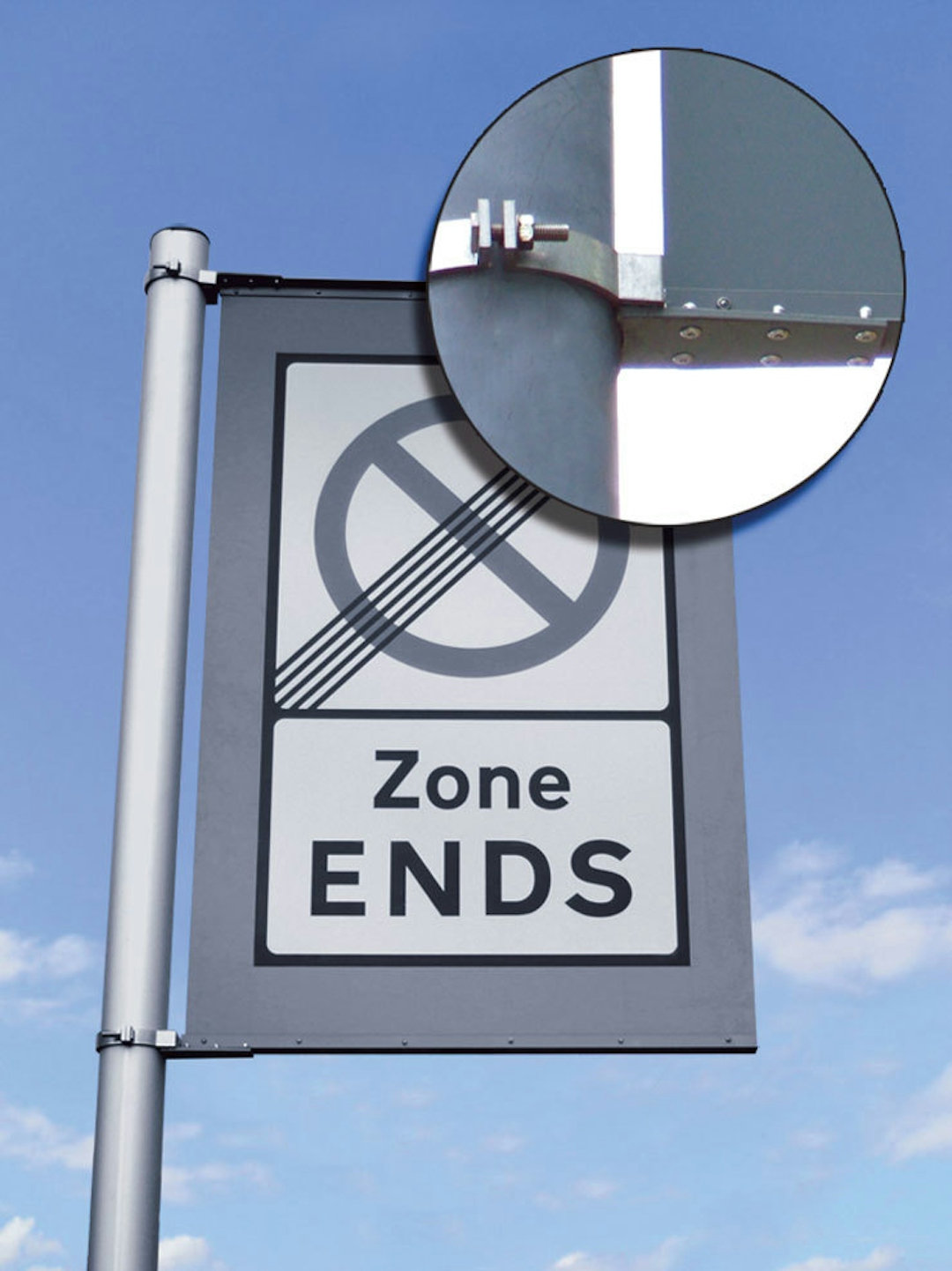

Aluminium Offset Brackets
Complete Small Offset Bracket Assemblies
| Length (inc Tee Section) | Painted Black | Painted Grey | Mill Finish |
|---|---|---|---|
200mm | |||
225mm | |||
300mm | |||
375mm | |||
450mm |
Complete Large Offset Bracket Assemblies
| Length (inc Tee Section) | Painted Black | Painted Grey | Mill Finish |
|---|---|---|---|
200mm | |||
225mm | |||
300mm | |||
375mm | |||
450mm | |||
600mm | |||
750mm | |||
900mm |
Black: RAL 9005
Grey: BS 381C/693
