Aluminium Composite Panel

The ideal material for almost any signage, decorative or cladding application, aluminium composite material (ACM) is durable, versatile and easy to use.

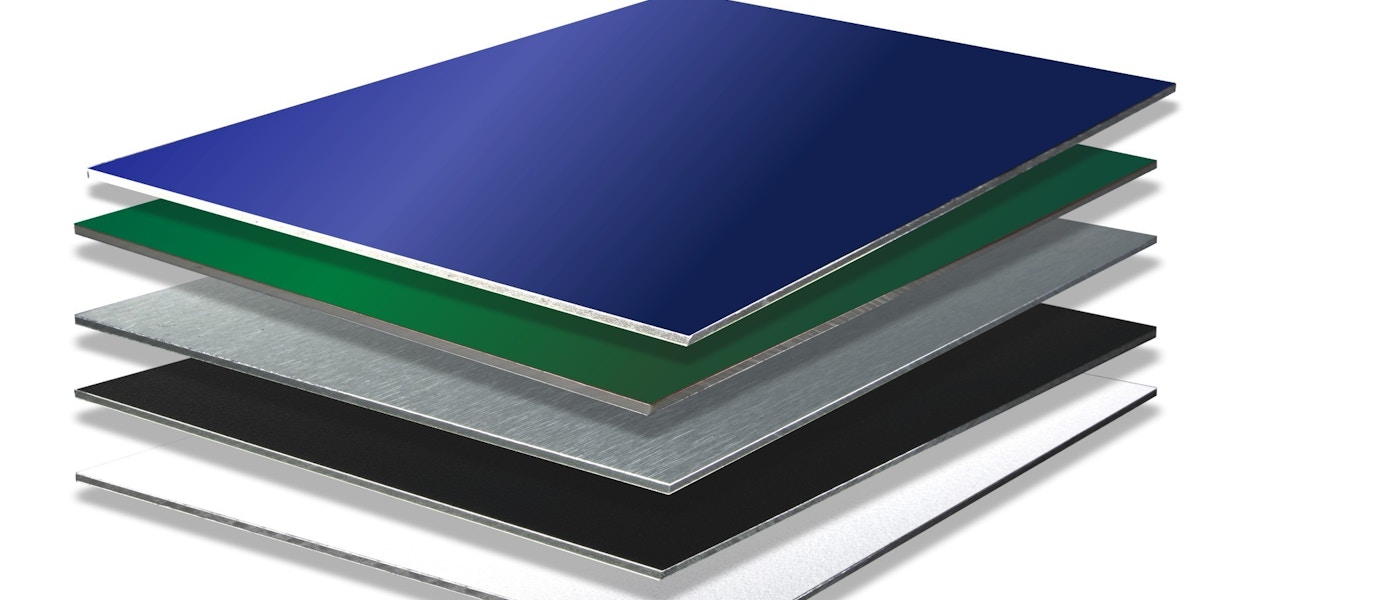

Lightweight and extremely flat, the sheet is exceptionally rigid and does not corrode. This rigidity is achieved and sustained by its construction of a polyethene core sandwiched between two thin aluminium sheets.

The high-quality finish polyester coating makes it an ideal substrate for printing.

ACM Range

Available in white, colours, UV print grade and special finishes including brushed, mirror, galvanised steel and dual metallic.

ACM is used in a wide range of industries and for numerous applications including: Sign & display, exhibition stands, interior cladding, hoarding, tranpsort, portable buildings, trailers and road traffic signs to name but a few.

White

Finish	Size (mm)	Aluminium Layer (mm)
White (Gloss/Matt UV Paint)	2500 x 1250 x 3	0.21 & 0.30
	3050 x 1500 x 3	0.21 & 0.30
	4050 x 1500 x 3	0.30
	3050 x 2000 x 3	0.30
	4050 x 2000 x 3	0.30
White (Matt/Mill UV Paint)	2440 x 1220 x 3	0.12, 0.15 & 0.18
	2500 x 1250 x 3	0.18
	3050 x 1500 x 3	0.15 & 0.21

Special Finishes

Special Finish	Colour	Size (mm)	Al Layer (mm)
Internal Mirror	Silver/Mill	2440 x 1220 x 3	0.30
	Silver/Mill	3050 x 1220 x 3	0.30
	Gold/Mill	2440 x 1220 x 2	0.30
Galvanised Steel/Magnetic	White/Mill	2440 x 1220 x 3	0.30
Dual Metallic	Gold Bronze	3050 x 1500 x 3	0.30
	Champagne/Metallic Silver	3050 x 1500 x 3	0.30
Dual Metallic (UV Paint)	Light Grey/Dark Grey	3050 x 1500 x 3	0.21
	Light Bronze/Dark Bronze	3050 x 1500 x 3	0.21

Key Features

Outstanding weather resistance
Fire retardant qualities
Corrosion resistant
Excellent colour stability
Wide range of colours and finishes

Amazing rigidity at an incredibly lightweight
Incredibly flat smooth surface
Easily cut, folded and formed
Can be finished in many ways, from the application of vinyl, screen printing, digital printing and the application of paints for traditional signmakers

General Information on ACM

ACM Commercial Benefits

High dimensional stability

Composite sheet does not have imperfections due to size, meaning it remains stable whatever the dimensions without any loss of its characteristics.

Various appliable finishes

One of its greatest assets is its aesthetic versatility, whether textured or solid, wood or transparent type finishes, aluminium composite sheets can be adapted to suit.

Impact resistance

In-depth research confirms aluminium’s durability in building facades due to wear resistance, longevity and corrosion resistance.

Easy assembly

Using easily operable hanging systems, Aluminium Composite Sheets are easily individually replaceable.
